Four Band GSM 2G 3G 4G Mobile Network Signal Booster 900 1800 2100 2600MHz

Product Paramenters

Technique Specification
Model No		SS62-CDWL
Parameter data		Uplink	Downlink

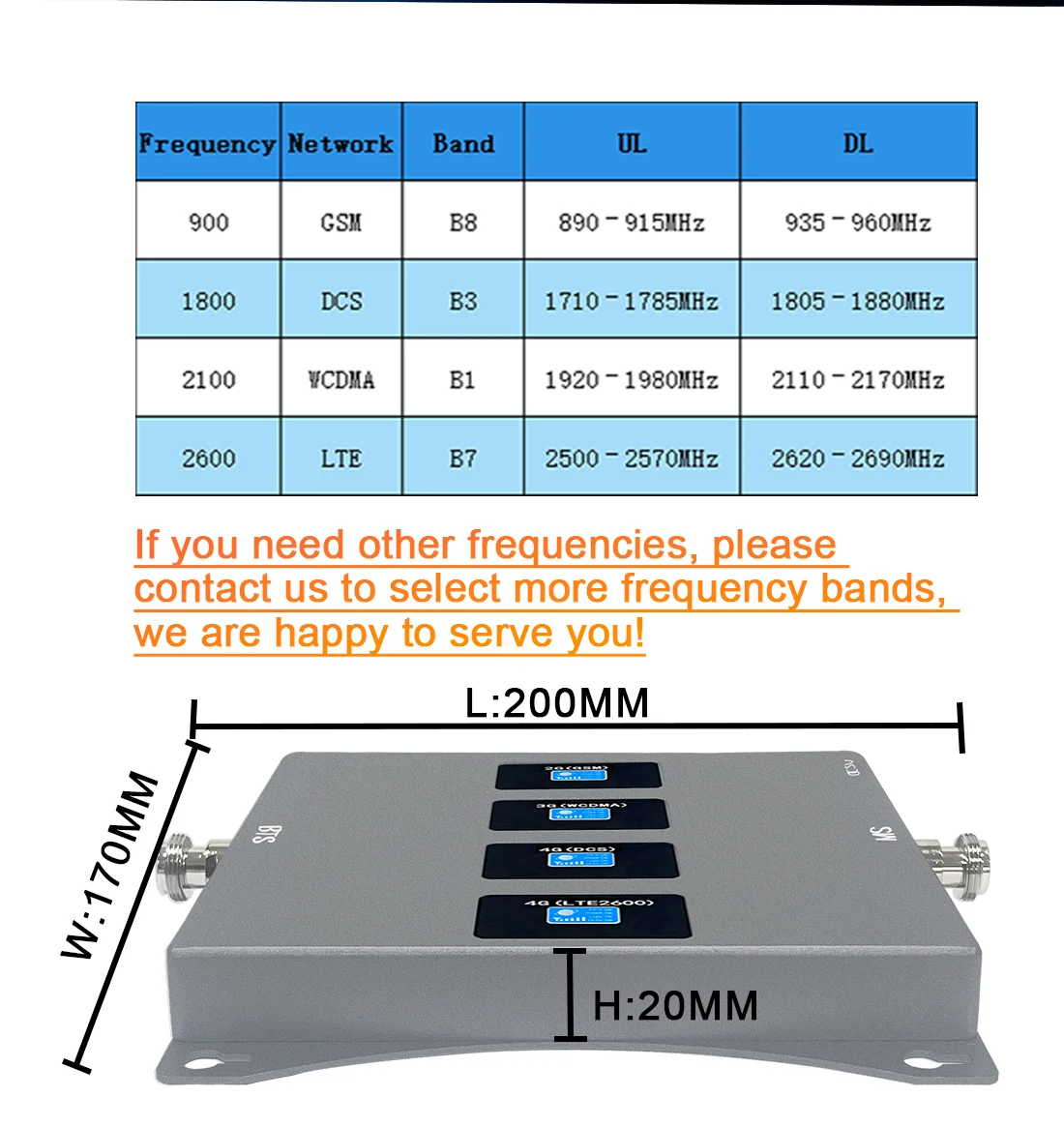

Frequency Range	GSM	890 - 915 MHz	935– 960 MHz
	DCS	1710~1785 MHz	1805~1880 MHz
	WCDMA	1920~1980 MHz	2110~2170 MHz
	LTE(B7)	2500~2570 MHz	2620~2690 MHz
Output Power		18 ±2dBm	20 ±2dBm
Gain		65±2 dB	70±2dB
Ripple in Band		≤3dB
Intermodulation Products	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
Spurious Emission	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
Noise Figure		≤ 6 dB
VSWR		≤2
Power Supply		AC:100~240V, 50/ 60Hz;DC:12V 3A
Power Comsumption		< 48W
Impedance		50 ohm
Mechanical Specification
RF Connector		N-Female
Dimensions (D x W xH )		200*170*20mm
Weight		≤ 1.2Kg
Operating Temperature		-10℃ ~ 55℃

Products Description
